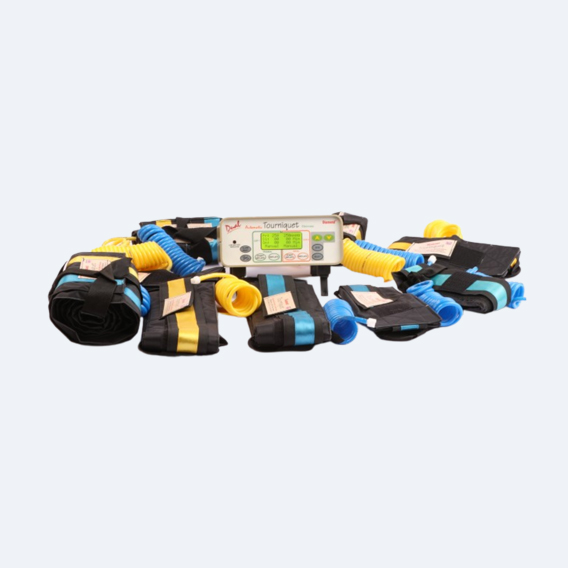

MANUFACTURER :DIAMOND
Product Details
- Microprocessor based
- Fully automatic
- Suitable for Iv RA (Biers block) procedure
- Independent channel operation
- Sophisticated alarms
- Color coded cuffs and air tubing
- Comes with 3 dual cuffs and 6 single cuffs
- Standard washable cuffs
- Trustworthy companion during orthopedic surgery
Key Features
- Fully Automatic to perform double cuff procedure as well as IVRA Biers Block procedure.
- The cuff pressure is always maintained to set value automatically.
- The set value of cuff pressure can be altered to any other desired value even while it is in working mode.
- Independent channel operation for Proximal as well as Distal side Cuff.
- Parameter settings are independent of each other.
- Can be operated with one Dual/Double cuff OR two Single separate cuffs with different pressures.
- This Tourniquet can be programmed to suit your operation and post-operation needs by setting the parameters (DI) START DELAY and (ON) DURATION time.
- Both the parameters START DELAY and ON time can be changed during the operation before it’s individual execution.
- Manual override for Cuff Deflation during programmed timing is also possible.
- Sophisticated ALARMS to give better warning messages.
- Independent ELAPSED TIME DISPLAY for both the channels.
- The last settings remain in the MEMORY when power is turned off.
- This Tourniquet is battery operated, hence PORTABLE, and can be used anytime, anywhere even for post-operation.
- Built in battery charging circuit to re-charge the battery immediately by just connecting the power cord.
- Colour coded cuffs and air tubing, specially designed. soft armored type cuffs to protect from accidental piercing by sharp tools.
- Coiled, expandable, puncture-resistant PU tubing with positive locking connectors PLC.
Technical Specification
- Cuff pressure: 100 to 500 mm of Hg with 2 mm of Hg resolution
- Start Delay: 0 to 250 minutes setting
- On/Duration Time: 0 to 250 minutes setting
- Pressure Output Port: 2 ports having positive locking connectors (PLC)
- Cuff Pressure Regulation: + /- 8 mm of Hg
- Power: Re-chargeable battery ( Built-in battery charging circuit)
- Operation Method: Micro-controller based control
- Elapsed Time Display: minutes : seconds
- Tourniquet Cuff Types: 1 set of standard Dual cuffs & 2 sets of three standard size Single cuffs
- Dimensions: 185(W) X 95(H) X 170(D) mm
