BRAND : MEDINAIN
Special Features
Multi-level filtration
Easy movement
Compact design

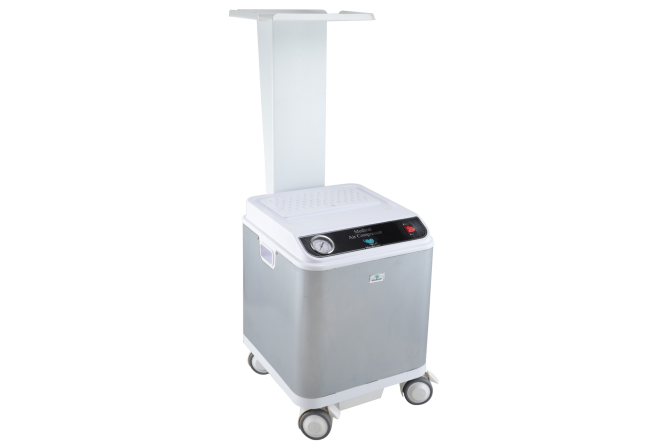

With ventilator stand trolley
To Control the Sound and Vibration advance technology of double insulation.
Inbuilt Thomas motor
With addition Fan Cooling.
Pressure can be adjusted (High/Low) with Regulator.
High Capacity Air Storage Cylinders.
4 castor wheels (2 Lockable wheels)
Adopting highly efficient oil-free compressor core.
For safety, the compressor is equipped with audio and visual alarm.
Technical Specifications
Voltage And Frequency : 220 VAC+/-50/60 Hz
Compressor Efficiency : 120 I.min- 1/3, 5 bar
Air tent capacity : 2 Lit.
Peak flow at Pressure 3 Bar 200 1. min-1/3 bar
Filtration of air : 5 μm
Motor : Thomas
Dew point depression at : 40 Lit. min-1,20⁰ C5°C under the ambient temperature
Outlet connection : Diss1160-A(3/4″-16 NUF)
Mode of the operation : Continuous
Automatic back-up to central pipeline : On request
Noise Level : ≤ 49 dB [A]
