Product Details:
BRAND : BHARAT MEDICA
Parameters : ECG
ECG : Lead Mode 12 lead
Display : 8″
Suitable for : Neonatal, Pediatric, Adult
NIBP Mode : Manual
ECG Waveform : 5 Channels

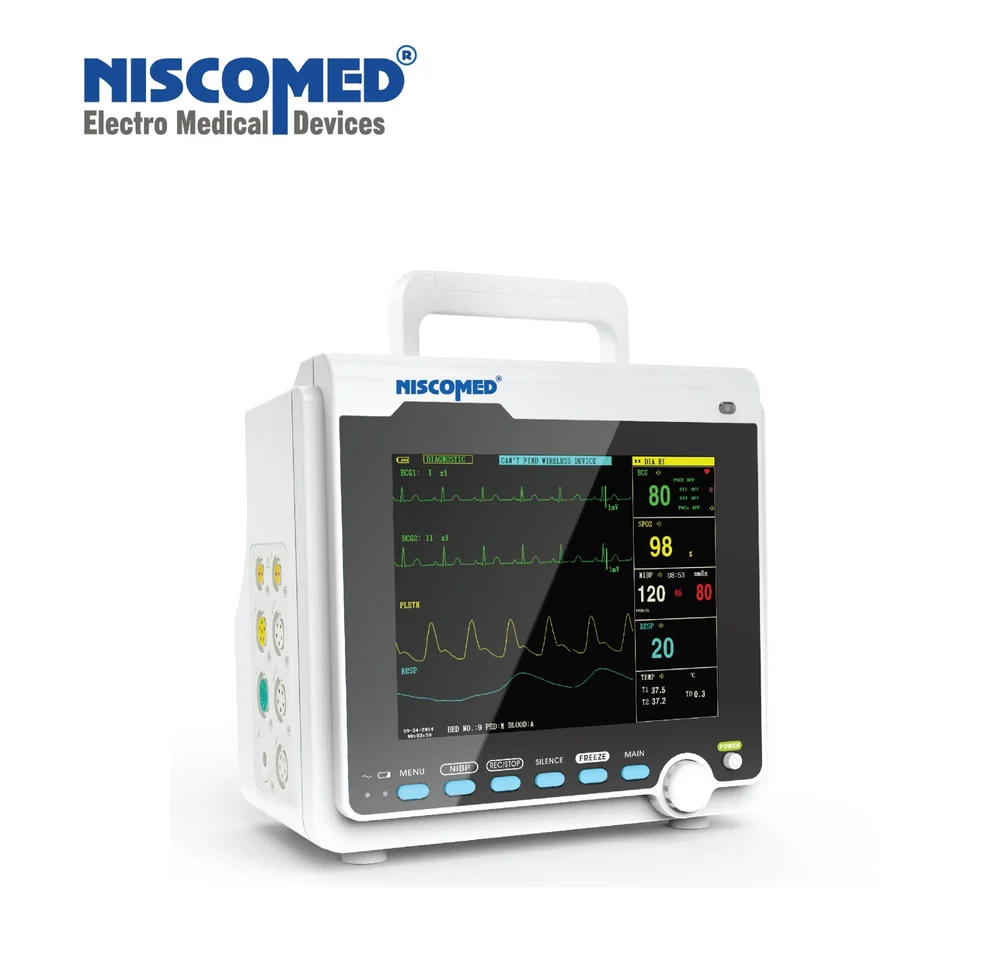

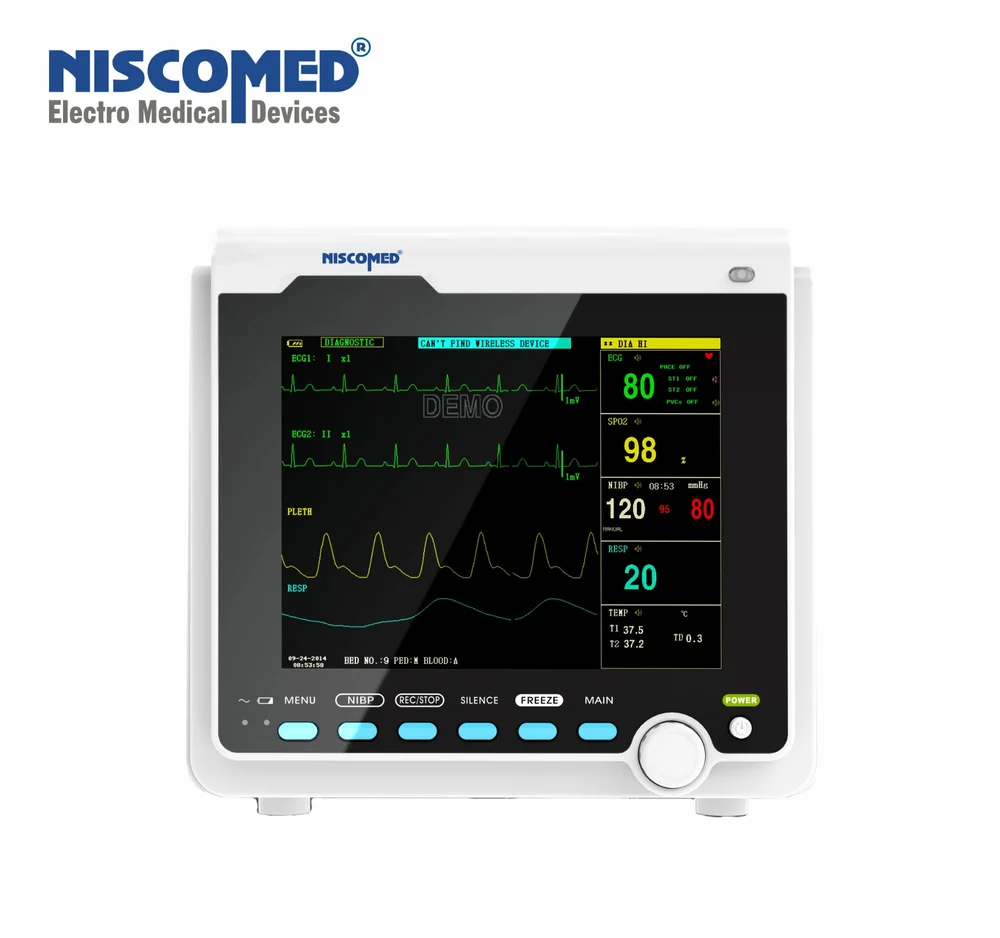

A light weight, compact and portable Multi Parameter Patient Monitor (8.4″) (3 Para/5 Para) features high resolution color TFT display and is suitable for Arrhythmia analysis and S-T segment analysis in neonatal, paediatric and adult patients. Further, this features 72 hours graphic and tabular trends of all parameters on the touch screen monitor with great level of accuracy.
NIBP:
Method Oscillometry
Modes Manual / Auto / Continuous
Auto Measure time Adjustable
Measurement range 10-270mmHg
ECG:
Lead Mode 3-Iead Or 5-lead
Lead Selection I, II, III, avR, avL, avF, v
Heart rate range Adult: 15-300bpm, pediatric /
Neonatal 15-300bpm
ECG waveform 2 channels
Accuracy ±1 bpm or±1 %, Whichever is greater
S-T segment detection: Measurement range 0.2mv~2.0mv
Specifications:
Alarm Yes, audible and visual alarm, alarm events review
High resolution 12.1” or 8.4” color TFT display
Lightweight, compact and portable
ECG, SPO2, NIBP, RESP, 2-TEMP, PR
Built-in rechargeable lithium battery
ECG waveforms of 7-leads display on the same screen
+72-hours graphic and tabular trends of all parameters
72 alarm events of all parameters recall
32 seconds full-disclosure waveform review
500 NIBP measurement data can be stored and recall
Data and waveforms color can be adjustable
Arithmetic analysis and S-T segment analysis
Suitable for adult, pediatric and neonatal patient
SPO2:
Measurement range 0-100%
