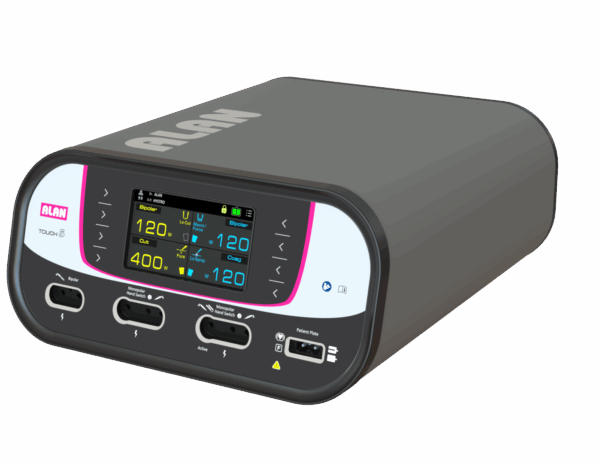

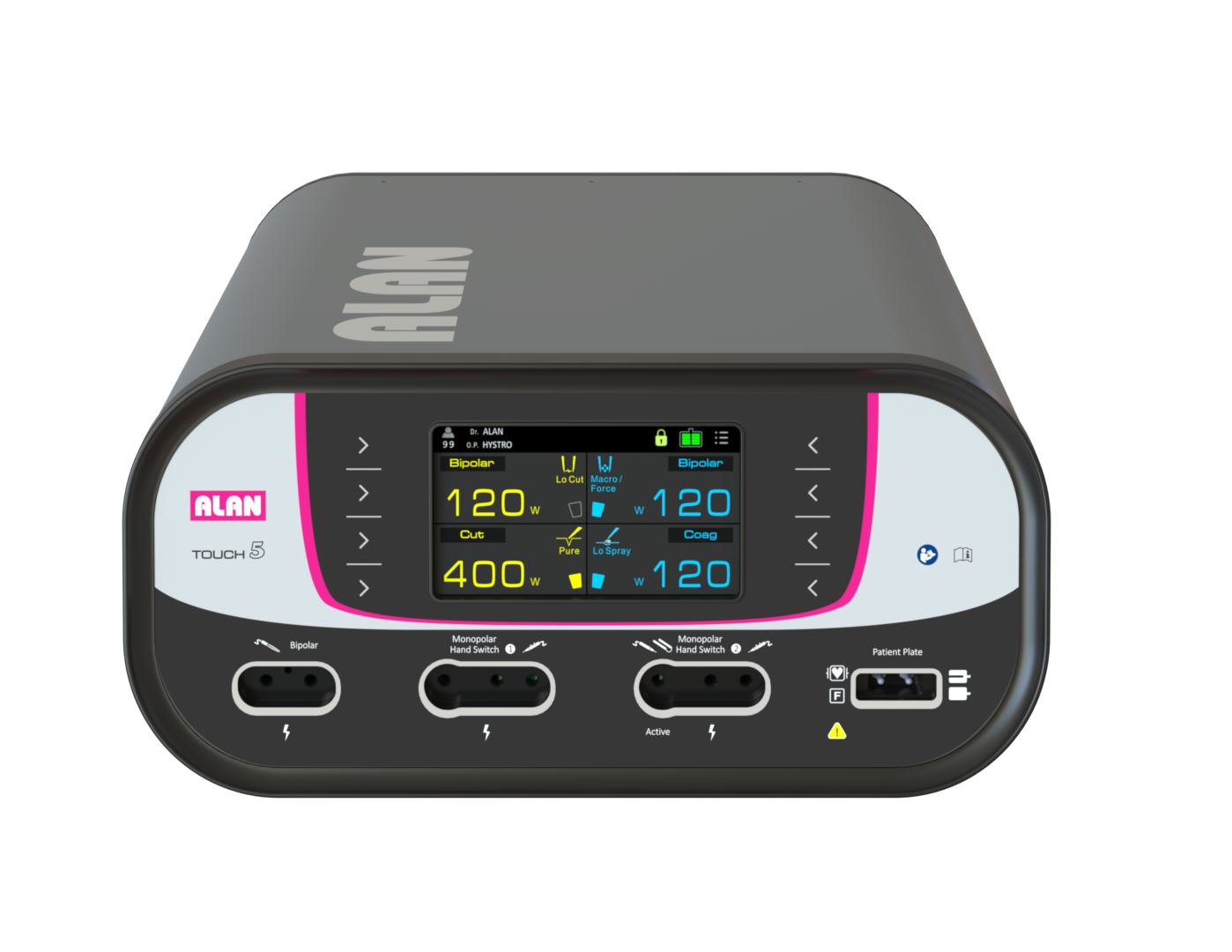

COMBI

BRAND : ALAN

GENERAL FEATURES :

Advance multiple microcontroller based generator for Open and Laparoscopic Surgeries.
5-inch LCD touch screen display with intuitive interface, and additional feather touch buttons.
Intuitive User Interface facilitates easy program and modes selection with Seamless Operations.
Features 2 Monopolar, 1 Bipolar and I Ligate. Socket, for handswitch and footswitch activation
It is compatible with universal accessories used in Monopolar and Bipolar Surgical Applications,
Supports ALAN’s special Capacitive Patient Plate for maximum safety of the patients in surgeries.
PPCM feature monitors patient’s contact quality and provides real-time graphical representation
“Self-Test”, diagnoses at every “START UP” for Generator’s Healthiness & Operational Integrity.
Automatically stops the power output and provides audio-visual indication during problem.
Multiple cutting modes with varied regulated wattages for smooth and precise skin incisions.
It can seal up to 7 mm of vessel thickness and withstand 3 times systolic and diastolic pressure.
It has Isolated Monopolar and Bipolar outputs, Eliminating the Frequent need for Switch Overs
HF power output can be adjusted using touch screen and hand switch pencil from sterile field.
Simultaneous monopolar coagulation for 2 surgeons via hand switch and footswitch pairing.
Tissue monitoring technology measure Tissue Impedance & Dynamically varies the HF Output.
System restores previous activated power settings when encountered power interruptions.
“Current Meter Display” in the Bipolar Mode to Indicate the “Flow of Current” during surgeries.
HF current leakage monitoring & controlling system supervises and controls it less than 10 uA.
99+1 user programmable memory for surgeons. to store & recall surgery preferences and details.
Upgradeable and compatible with Argon Plasma Coagulation & Smoke Evacuator System.
